Air Explosion Fountain

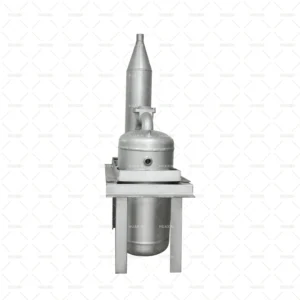

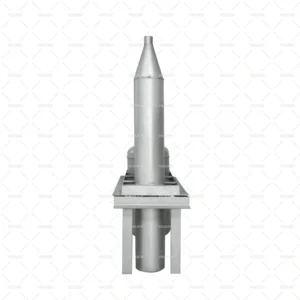

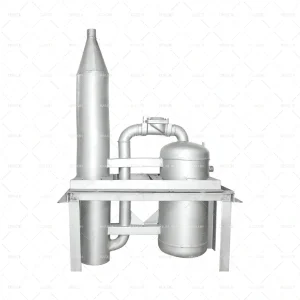

Air Explosion Fountain

The air explosion fountain is widely used in today’s musical dancing fountain and water landscape engineering because of its strong jet, spectacular water shape, and loud blast sound.

Advantage:

The air explosion fountain is widely used in today’s musical dancing fountain and water landscape engineering because of its strong jet, spectacular water shape, and loud blast sound.

①Uses a screw air compressor to ensure sufficient power.
②Air-pressure powered nozzles with short refill times.
③Spray height: up to 80 meters.
④Robust stainless steel construction.
⑤National patent certification.

Previous
Next

Parameters of the equipment

Air Explosion Fountain Nozzle (PG15)

Material304 Stainless steel
Dimensions (length mm*width mm*height mm)680*325*630
Weight (kg)38
Spray height (m)15-19
Nozzle diameter (mm)31
Air intake diameterDN15
Standard pressure (mpa)0.6

Air Explosion Fountain Nozzle (PG25)

Material304 Stainless steel
Dimensions (length mm*width mm*height mm)680*330*830
Weight (kg)40
Spray height (m)20-29
Nozzle diameter (mm)31
Air intake diameterDN15
Standard pressure (mpa)0.8

Air Explosion Fountain Nozzle (PG35)

Material304 Stainless steel
Dimensions (length mm*width mm*height mm)750*370*1280
Weight (kg)56
Spray height (m)30-39
Nozzle diameter (mm)31
Air intake diameterDN15
Standard pressure (mpa)0.8

Air Explosion Fountain Nozzle (PG45)

Material304 Stainless steel
Dimensions (length mm*width mm*height mm)760*385*1280
Weight (kg)60
Spray height (m)40-49
Nozzle diameter (mm)31
Air intake diameterDN25
Standard pressure (mpa)0.8

Air Explosion Fountain Nozzle (PG55)

Material304 Stainless steel
Dimensions (length mm*width mm*height mm)980*385*1480
Weight (kg)92
Spray height (m)50-59
Nozzle diameter (mm)31
Air intake diameterDN25
Standard pressure (mpa)1.0

Air Explosion Fountain Nozzle (PG70)

Material304 Stainless steel
Dimensions (length mm*width mm*height mm)1410*720*1980
Weight (kg)243
Spray height (m)70-78
Nozzle diameter (mm)47
Air intake diameterDN25
Standard pressure (mpa)1.2
