CNC Nozzles

Laminar Flow Fountain

laminar flow fountain

laminar flow fountain

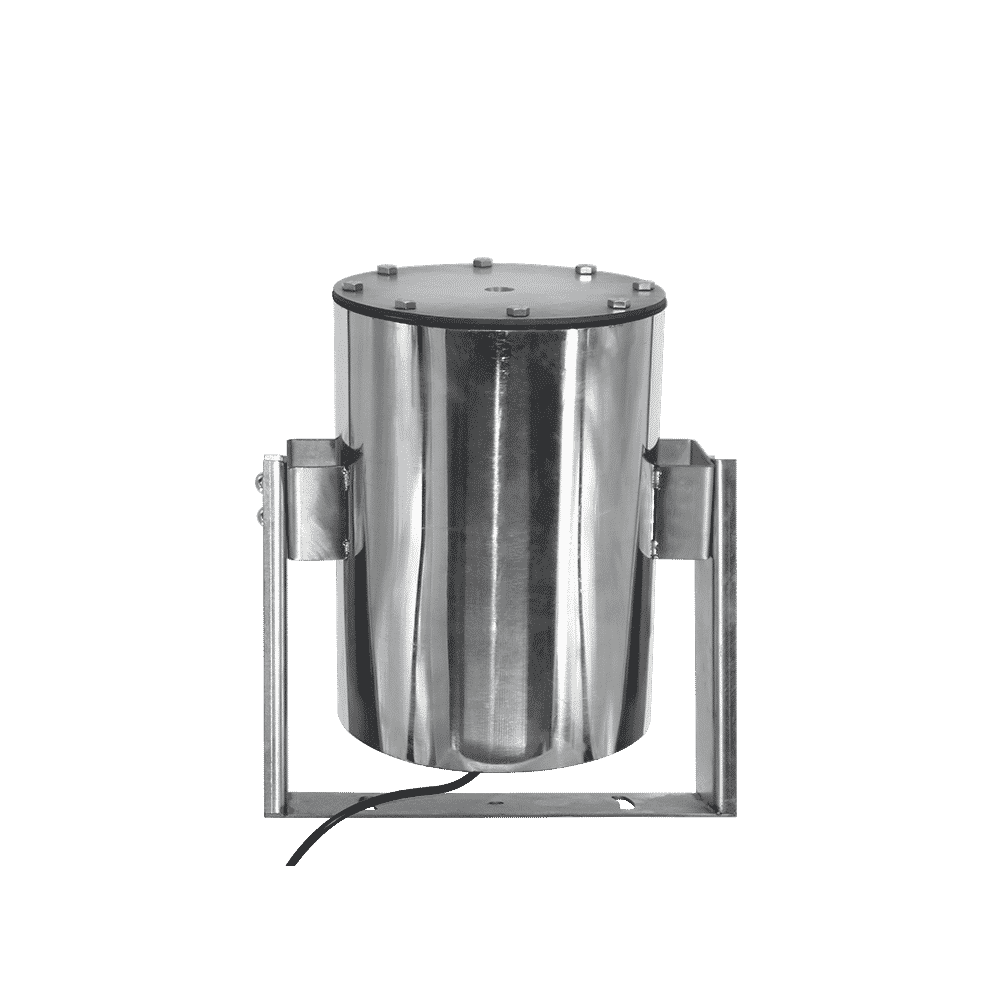

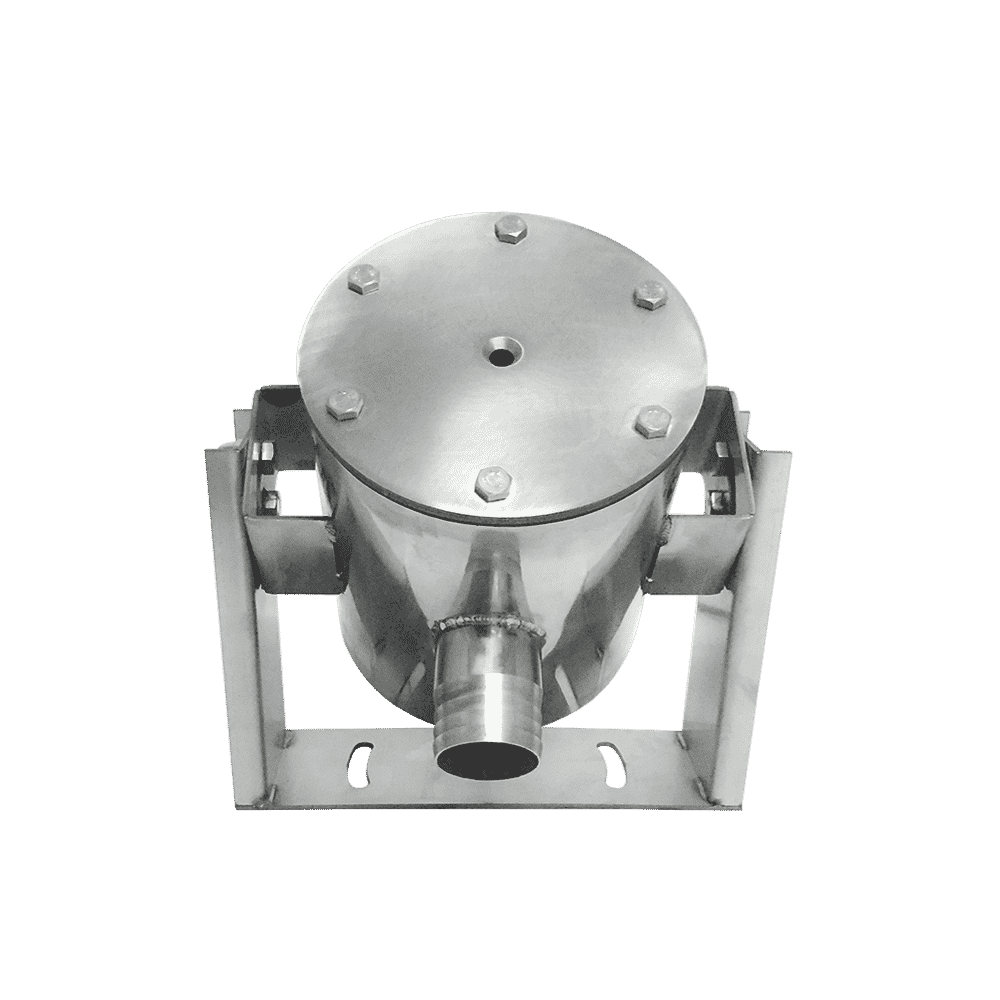

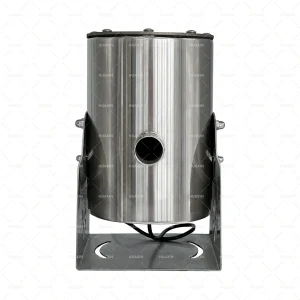

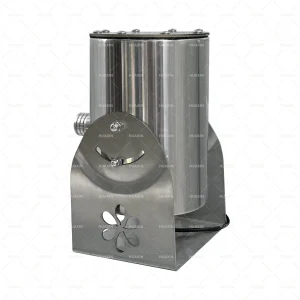

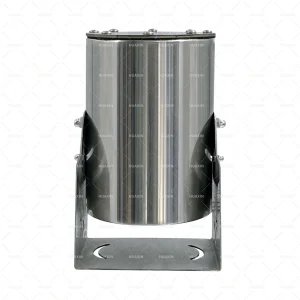

Laminar flow fountain is a kind of fountain that sprays water into glass under pressure. First, the water enters the laminar fountain equipment through the water inlet. And then is filtered by the filter. Finally sprayed from the water jet to form a glass rod-shaped arched fountain. This transparent water column is very ornamental.

Advantage:
①crystal clear, laminar water jet.
②Built-in RGB LED light, and evenly colored.
③Robust stainless steel construction.
④National patent certification.

Previous
Next

Parameters of the equipment

laminar flow fountain jet (S)

Material304 stainless steel
Net weight (KG)5.5
Rectifier barrel size (mm)Ф168*200
Packing size (mm)270*250*320
Water outlet (mm)10
water intakeDN40
Flow rate (M3/H)3
Pressure (KPa)3
Spray height (m)1.8
Span (m)1.8
Standard built-in light3W/6W monochrome

laminar flow fountain jet (M)

Material304 stainless steel
Net weight (KG)10
Rectifier barrel size (mm)Ф219*300
Packing size (mm)330*310*420
Water outlet (mm)14
water intakeDN40
Flow rate (M3/H)4
Pressure (KPa)5
Spray height (m)2
Span (m)3
Standard built-in light3W/6W monochrome

laminar flow fountain jet (L)

Material304 stainless steel
Net weight (KG)14.5
Rectifier barrel size (mm)Ф273*350
Packing size (mm)370*370*480
Water outlet (mm)15
water intakeDN40
Flow rate (M3/H)5
Pressure (KPa)8
Spray height (m)2.5
Span (m)4
Standard built-in light3W/6W monochrome

laminar flow fountain jet (XL)

Material304 stainless steel
Net weight (KG)18.5
Rectifier barrel size (mm)Ф323*400
Packing size (mm)450*430*550
Water outlet (mm)16
water intakeDN40
Flow rate (M3/H)6
Pressure (KPa)8
Spray height (m)3
Span (m)5
Standard built-in light3W/6W monochrome
