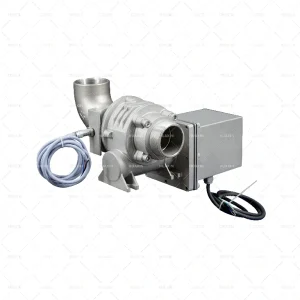

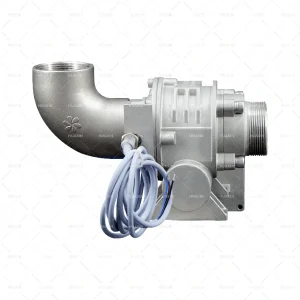

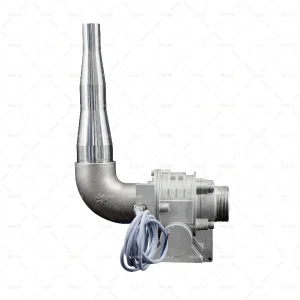

Multi-Directional Drive 1D
Our multi-directional drive 1D’s reducer adopts 304 integrated precision casting. The entire reducer body is formed at one time. The worm, worm gear installation part, and motor assembly flange are formed by CNC one-time clamping processing, which avoids the traditional way of the body The components are composed of different degrees of misalignment and different axes due to processing accuracy and assembly coordination, which fully guarantees the accuracy and waterproof performance of the reducer.
Previous
Next
Parameters of Multi-directional Drive 1D
| Material | 304 stainless steel |
| Nozzle diameter (mm) | DN50 |
| Length * width * height (mm) | 360*280*200 |
| Net weight (Kg) | 12.5 |
| Reduction ratio | 1970-01-01 01:10:00 |
| Stepper motor voltage | AC55V-70V |
| Stepper motor power | 300W |
| Stepper motor phase number | Two phase |
| Stepper motor maximum torque | 8 (N.M) |
| Sensor voltage | DC24V |
| Sensor line color separation | Brown-24V blue-GND black-return signal |
| Stepper motor line color separation | Red-A+ Green-A-Yellow-B+ Blue-B- |
| Recommended stepper motor mounting cable | JHS 4*2.5mm2 |
| Recommended sensor mounting cable | PVVP 3*1.0mm2 |
